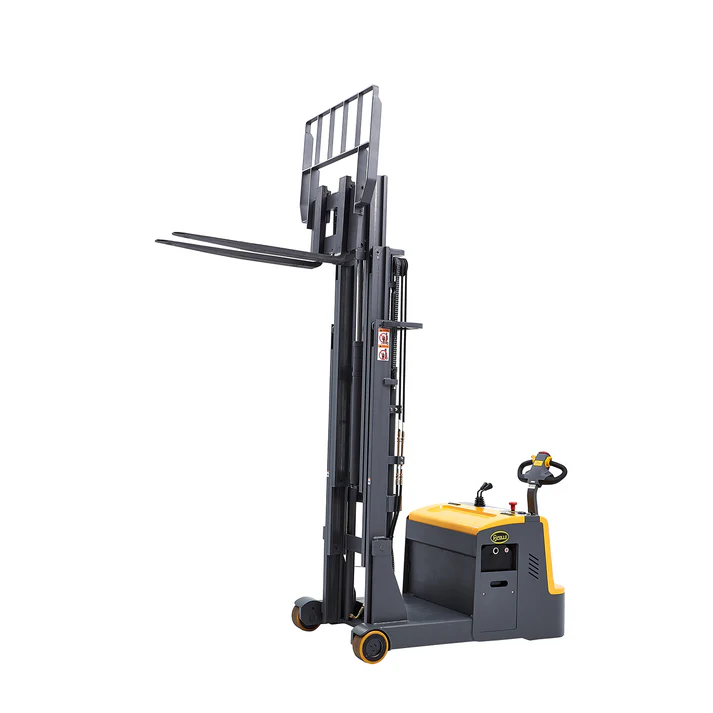

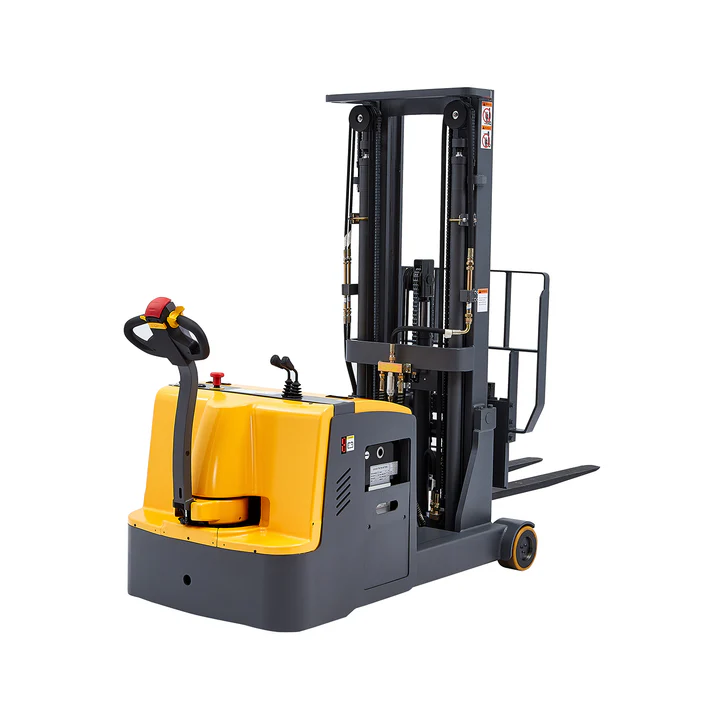

Counterbalanced Electric Stacker 3300lbs 177″ High A-3032



HEAVY DUTY COUNTERBALANCED STACKER

• 1,200-watt drive motor, 4,500-watt lift motor.
• Forks are adjustable to fit most pallets.
• Curtis (US Brand) Controller.

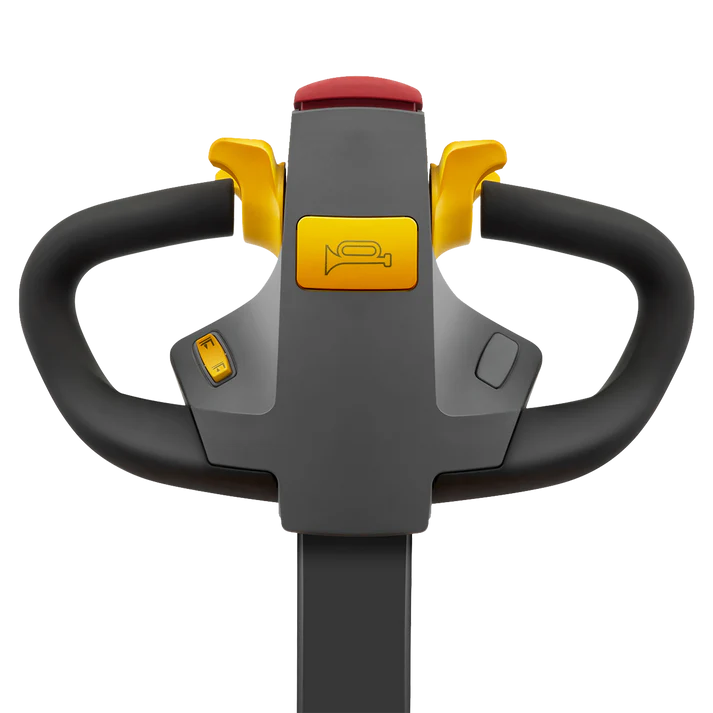

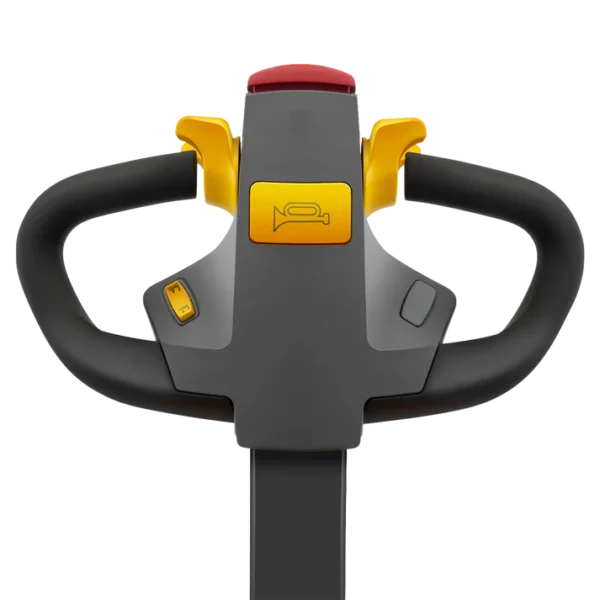

• Famous German brand handle tiller.

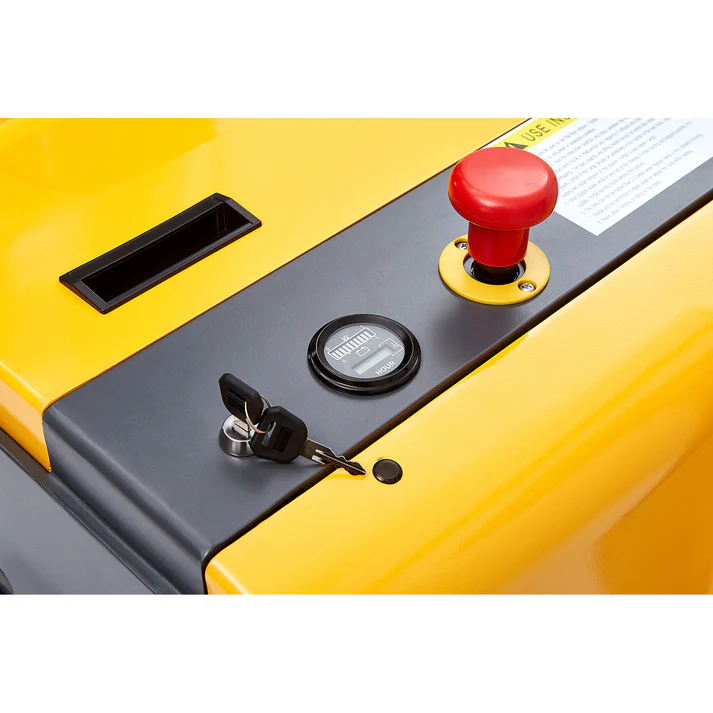

• Multi-function display shows the working hours, battery status and low-voltage protection.

*COUNTERBALACED ELECTRIC STACKERS

MODEL NO.	DESCRIPTION	LOAD         CAPACITY	HEIGHT        LOWERED	HEIGHT           RAISED	WHEEL           DIAMETER	WT (LBS)	PRICE
A-3031	Light duty stacker	1,200 lbs	1.38”	118”	7.7”/5.9”	1,920	$7,447
A-3032	Heavy duty stacker	3,300 lbs	1.38”	177”	9.8”/7.9”	4,580	$15,397
A-3040	Medium duty stacker	2,200 lbs	1.38”	118”	7.7”/5.9”	2,601.45	$8,447
A-3043	Medium duty stacker	2,200 lbs	1.38”	98”	7.7”/5.9”		$8,147

*SHIPS ASSEMBLED VIA MOTOR FREIGHT

*CAPACITY SHEET

LIFTING HEIGHT	ACTAL CAPACITY
below 118”	3,300 lbs
118”-137”	2,640 lbs
137”-157”	2,310 lbs
157”-177”	1,980 lbs

DIMENSIONS

• Overall Length: 104.3″
• Overall width: 39”
• Recommended Aisle Width: 120.9″
• Turning Radius : 61.8″
• Load center : 19.7″

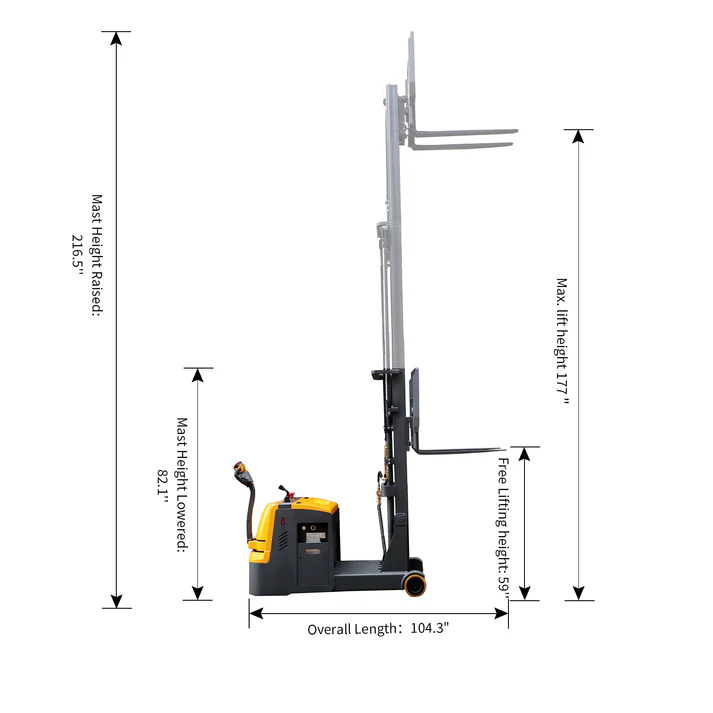

MAST

• Mast Height Lowered: 82.1”
• Max.Lifting height: 177”
• Mast Height Raised :216.5”
• Free Lifting height: 59”

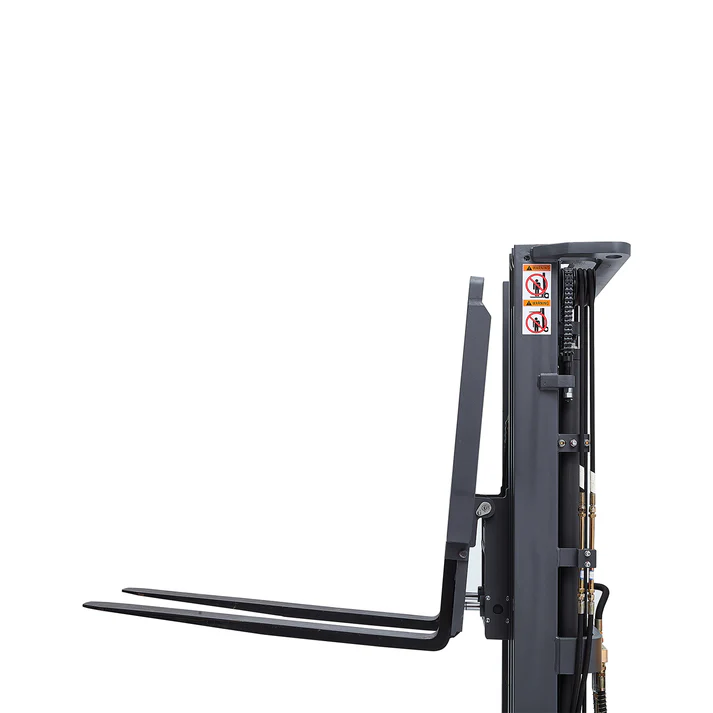

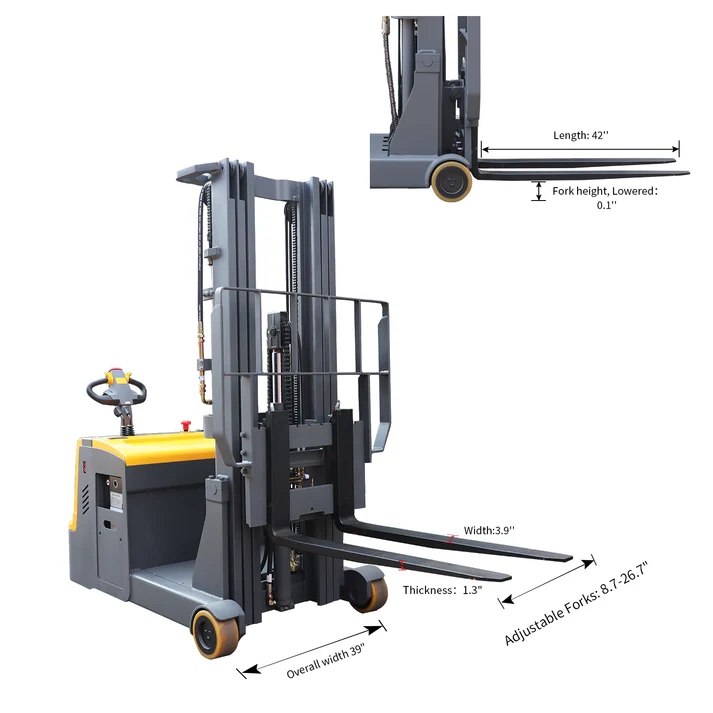

FORKS

• Thickness: 1.3″
• Width: 3.9″
• Length: 42″
• Adjustable Forks: 8.7-26.7″

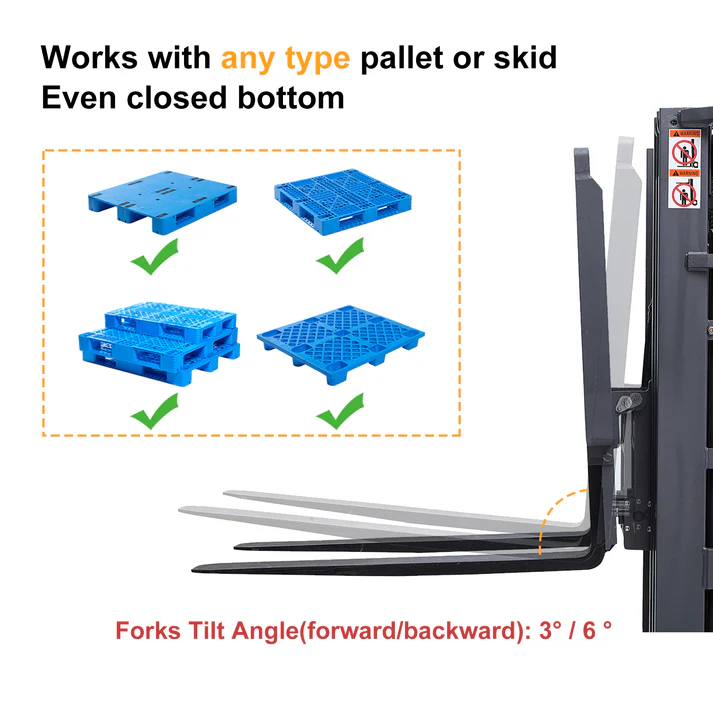

• Forks Tilt Angle(forward/backward): 3° / 6 °

SPEED

• Travel Speed (laden/unladen): 3.6 /3.7 mile/h
• Lifting Speed (laden/unladen): 0 – 4.7 / 0 – 6.3 inch/s
• Lowering Speed (laden/unladen): 0 – 17.7 inch/s

FEATURES

• Gradeability(laden/unladen): 6%/10%

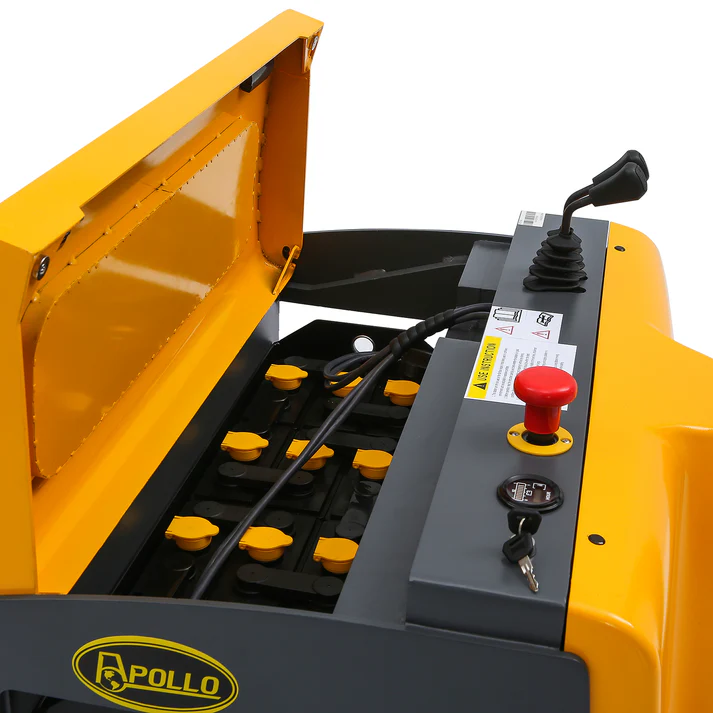

• 8 hours service per charge with big power lead-acid battery capacity 24V/280AH
• 8 hours charging time
• Long handle structure makes it steering light and flexible
• Vertical driving wheel, driving efficiency, easy installation& maintenance
• AC frequency conversion traction motor, compact structure, good performance
• With emergency stop switch and electricity lock button for safety
• Tilting system forks easy for loading and stacking

SPECIFICATIONS

• Not explosion proof.
• This stacker is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
• Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.
• Fully charge battery before use to avoid damaging cells.
• Charger plugs into standard 110V-120V outlets.
• Charge the truck once a month even it’s not in use.
